Transportation & Railroad
Exterior Lighting
AUT3156-0CW-014V
Description
BACKUP,C.White,14Vdc,Wedge
Base Type
Auto Wedge
Dimensions
1.80"Lx1.04"D
Color
Cool White
Color Temp
8000K
Voltage (V)
12/14Vdc
Power (Watts)
1.7 W
(@13.8V)
Intensity (Candela)
-- cd
Viewing Angle
25° per LED
SALE
B618-0UO-014B
Description
12/14Vdc,Sp.Orange
Base Type
Single Contact SC Bayonet B
Dimensions
1.62"Lx1.31"D
Color
Super Orange
Wavelength (nm)
620nm
Voltage (V)
12/14Vdc
Power (Watts)
-- W
Intensity (Candela)
-- cd
Viewing Angle
--°
BR631-0AG-014S
CALL TO ORDER
(800) 579-4875
Description
12/14Vdc,Aq.Green,Ba15s
Color
Aqua Green
Voltage
12/14Vdc
BSD-1981-003
Description
28-30Vdc,P.White,A19,Clear
Base Type
Edison Medium Screw E26
Dimensions
4.00"Lx2.40"D
Color
True White
Color Temp
5000K
Voltage (V)
28/30Vdc
Power (Watts)
2.2 W
Intensity (Candela)
116 cd
Viewing Angle
65°
@ c/l
PAR46-72-0ER-001
Base Type
Terminals
Color
Super Red
Wavelength (nm)
633nm
Voltage (V)
10~85Vdc
Power (Watts)
4.6 W
Lumens
90 lm
Viewing Angle
30°
PAR46-72-0ER-001
Base Type
Terminals
Color
Super Red
Wavelength (nm)
633nm
Voltage (V)
10~85Vdc
Power (Watts)
4.6 W
Lumens
90 lm
Viewing Angle
30°
PAR46-72-0ER-001
Base Type
Terminals
Color
Super Red
Wavelength (nm)
633nm
Voltage (V)
10~85Vdc
Power (Watts)
4.6 W
Lumens
90 lm
Viewing Angle
30°
RR004-01-0ER-076N
Description
76Vdc,Sp.Red,Rt.Ang
Base Type
Double Contact DC Bayonet B
Dimensions
Color
Super Red
Wavelength (nm)
635nm
Voltage (V)
76Vdc
Power (Watts)
2.66 W
Intensity (Candela)
Viewing Angle
RR005-01-0ER-040N
Description
40Vdc,Sp.Red,Rt.Ang
Base Type
Double Contact DC Bayonet B
Dimensions
1.68"Lx0.75"Wx0.75"T
Color
Super Red
Wavelength (nm)
635nm
Voltage (V)
41Vdc
Power (Watts)
0.8 W
Intensity (Candela)
Viewing Angle
160°
RR895-01-0ER-040V
Description
40Vdc, Sp.Red,Ba15D Base
Base Type
Double Contact DC Bayonet B
Dimensions
Color
Super Red
Wavelength (nm)
633nm
Voltage (V)
32-40Vdc
Power (Watts)
2.5 W
Intensity (Candela)
6.1 cd
Viewing Angle
33°radial, 33° cl

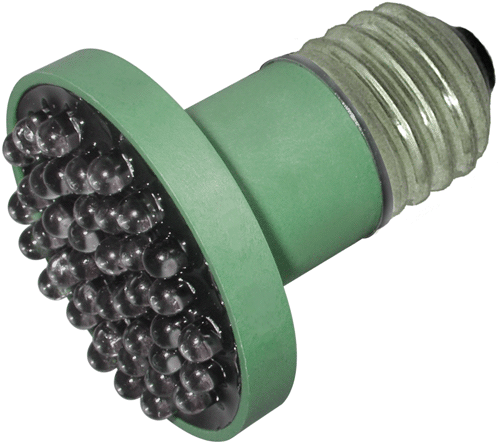

S1040-0ER-120AS
Description
120Vac,Super.Red,E26 Base
Base Type
Edison Medium Screw E26
Dimensions
2.45"Lx2.085"D
Color
Super Red
Wavelength (nm)
636nm
Voltage (V)
120Vac
Power (Watts)
3.6 W
Intensity (Candela)
160 cd
Viewing Angle
22°
